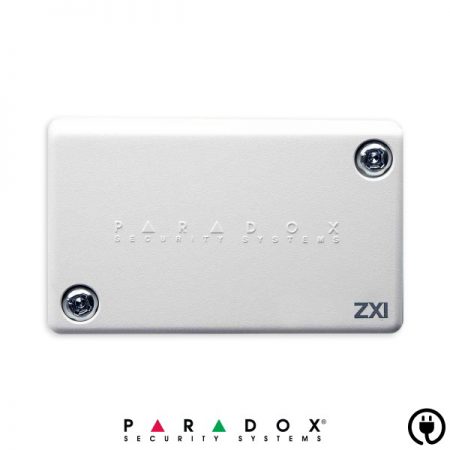

ZONE EXPANSION MODULE FOR EVO
• 1 addressable zone (2 with ATZ zone doubling feature)
• Set a different input speed for each zone (up to 255 minutes), which is ideal for temperature monitoring applications
10 Amp, 4-Circuit with QuadraSync, 24VDC
The Hochiki Notification Appliance Circuit Power Extender
• (2) Trouble Relays
• (2) Class A or Class B Trigger Circuits
• (2) Class A or (4) Class B NAC Circuits
• QuadraSync Protocols Include: Gentex, System Sensor, Faraday, Wheelock and Amseco
• QuadraSync Offers the Capability to Have a Different Manufacturer Model Notification Devices on Each Circuit Through Dip Switch Configuration
• Supports 7 - 55AH Batteries
• Accommodates (2) 12VDC/12AH batteries
10 Amp, 4-Circuit, 12 / 24VDC, Red
The Hochiki Notification Appliance Circuit Power Extender
• (2) Class A or (2) Class B FACP Inputs
• (2) NC Dry Contact Trigger Inputs
• (4) Class A or (4) Class B NAC Circuits
• Sync Protocols Include: Gentex, System Sensor, Faraday, Wheelock and Amseco

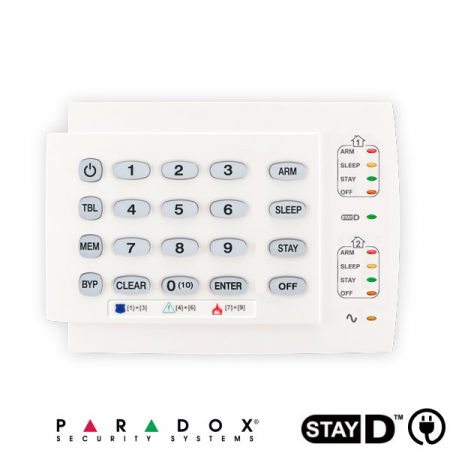

HARDWIRED LED KEYPAD
• StayD status LED
• Compatible with E55, MG5000, MG5050 and Spectra SP series
• Single partition keypad
• 10-zone LED display
• Patented Key Light display (button lights up to indicate an open zone)
• Arm, Sleep, Stay and Off keys illuminate to indicate partition status
• Adjustable backlight

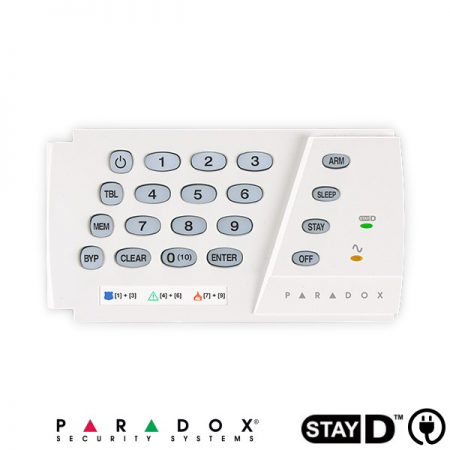

HARDWIRED LED KEYPAD (Horizontal)
• StayD status LED
• Compatible with MG5000, MG5050 and Spectra SP series
• 10-zone LED display
• Separate Arm, Sleep, Stay and Off LEDs per partition
• Patented Key Light display (button lights up to indicate an open zone)
• 1 keypad zone input
• Independently set chime zones
• 7 one-touch action buttons
• 3 keypad-activated panic alarms
• Adjustable backlight
• Connects to 4-wire communication bus

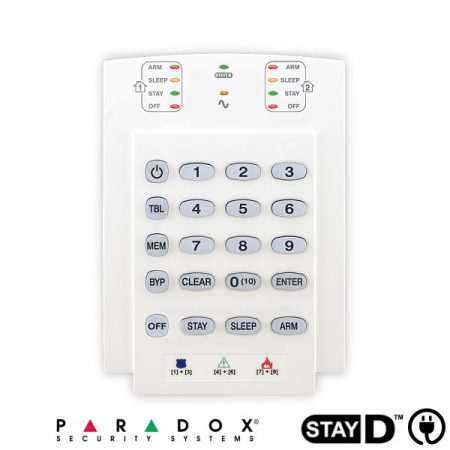

HARDWIRED LED KEYPAD (Vertical)
• StayD status LED
• Compatible with MG5000, MG5050 and Spectra SP series
• 10-zone LED display
• Separate Arm, Sleep, Stay and Off LEDs per partition
• Patented Key Light display (button lights up to indicate an open zone)
• 1 keypad zone input
• Independently set chime zones
• 7 one-touch action buttons
• 3 keypad-activated panic alarms
• Adjustable backlight
• Connects to 4-wire communication bus
16 Channel Input / Output Board
The FireNET FN-4127-IO is a 16 channel Input/Output board that provides powerful input/output expansion & addition to the FireNET system allowing up to thirty two I/O boards to be connected to each FireNET panel within the FireNET network. Every I/O board connected to any panel is available to the entire network, which allows for network wide input/output mapping. Typical uses include graphical LED map displays /annunciators, tabular LED zone display/annunciators, input/output logic to & from the fire system for secondary use (I/O board points cannot be used for primary fire initiation inputs or notification outputs) such as access control, burglar, CCTV, intercom, voice, or other 3rd party systems. Each channel can be configured to produce a variety of input actions or respond to a variety of output
categories or logic
• 16 channels of input/output points
• 32 I/O boards per FireNET panel (512 channels of input/output points)
• Each channel configurable as input or output point
• Inputs are opto-isolated non-supervised pulldown type triggered by “dry” contact from input source
• Outputs are open collector transistor pulldown type (100mA max each) that provide “wet” voltage output
• Simple 4 wire connection to control panel (2 for power, 2 for data)
• All inputs/outputs can be assigned to global functions, any event category, and used in network wide Cause & Effect logic
• Can be mounted locally within control panel enclosure or remotely via FN-ACC accessory enclosure up to 4000ft from the panel
• Each I/O board has a unique address 1-32 (set viaDIP switch) on the I/O Comms Bus
• Input/Outputs are for secondary use, not for primary fire initiation inputs or notification outputs
• Two LED’s are provided for communication status
